With this fuel water separator filter, you can be confident in the performance of your marine engine, ensuring clean fuel delivery and preventing water contamination. Whether you're using it for a boat, yacht, or any other marine diesel-powered equipment, the S3213 filter assembly will keep your engine running smoothly for years to come.
Item No :
Similar to 130306380Payment :
T/T, Cash, AlipayColor :
Black and transparentShipping Port :
Ningbo Port, Shanghai PortWeight :
135gDescription:
Ensure optimal fuel quality and engine protection with our S3213 Marine Fuel Water Separator Filter Assembly, designed to replace OEM part numbers including Mercury 35-60494-1, Yamaha MAR-24563-03-00, and Lacor S3213. This high-performance filter assembly is compatible with a wide range of marine engines and provides efficient separation of water from diesel fuel, enhancing engine longevity and performance.
Crafted from durable materials such as brass and a transparent collection bowl, this filter assembly offers reliability and easy maintenance. The built-in filter element features a finely perforated surface, effectively trapping impurities, while the transparent bowl allows for clear visibility of water and debris buildup. This feature ensures timely maintenance, preventing any contaminants from damaging your engine.
Parameter:
Product Name | Fuel Water Separator Filter |
Brand | SGL |
Item Grade | Replacement Part |
Outer Material | Brass |
Country of Origin | China |
Manufacturer | SGL Company |
Manufacturer Part Number | S3213 |
Replacement OEM Number | 35-60494-1, S3213, 18-7932-1,18-17928, 35-809097 |
Exterior | Paint |
Filter Screen | Aluminum |
Micron Rating | 100 Microns |
Weight | 1.02 kg |

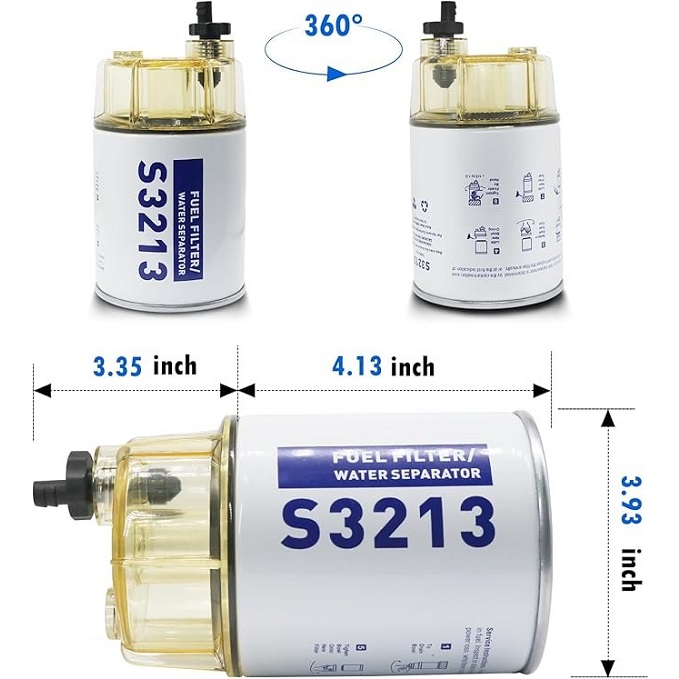

Dimensions | 11 x 11.4 x 23.39 cm |
Application | Suitable for diesel engine part replacement or trucks |
Fuel Water Separator Filter Assembly Replacement: Mercury 35-60494-1, Lexus S3213, B32013, 18-792-1, 18-79282, 18-7928-1
Filter Replacement: Mercury Marine 35-809097, Lacor S3213, Yamaha MAR-24563-03-00, 18-7919, 18-7919-1
Cleaning Bowl Replacement: 18-7922-1, 18-7922
Bracket Replacement: 18-7853-1
Package Included:

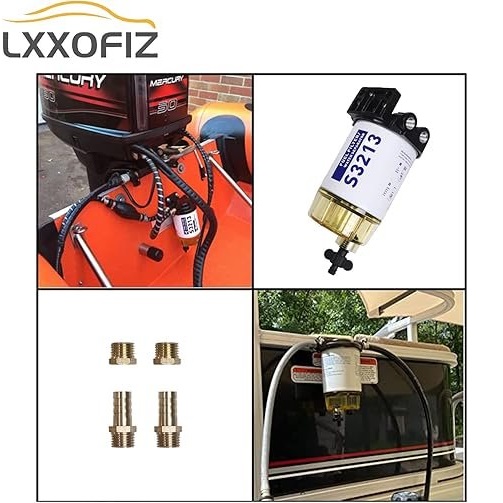

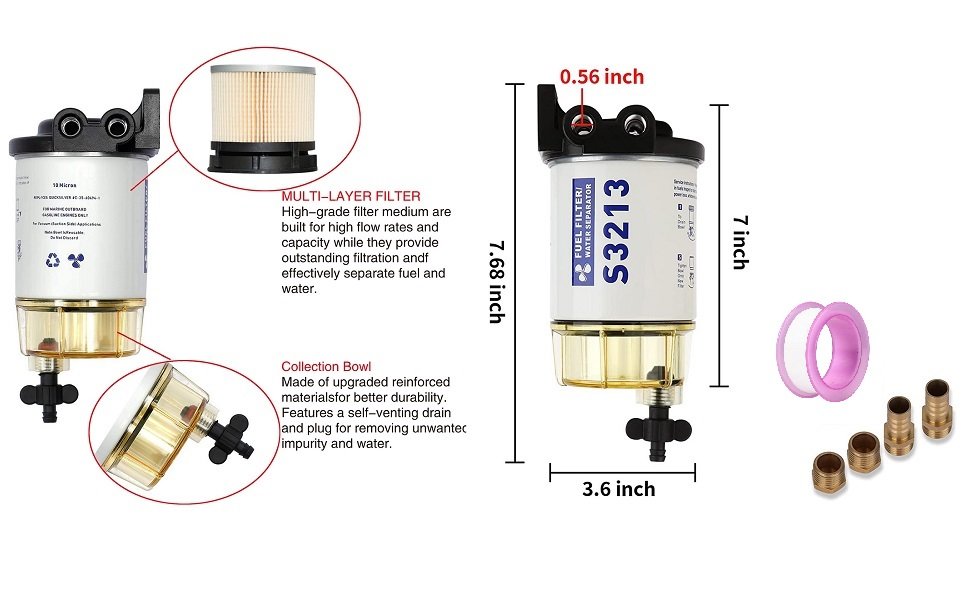

1.1 x S3213 Marine Fuel Filter Assembly with Clear Bowl
2.3/8" Thread x 1/4" NPT Fitting
One Roll of PTFE Thread Tape

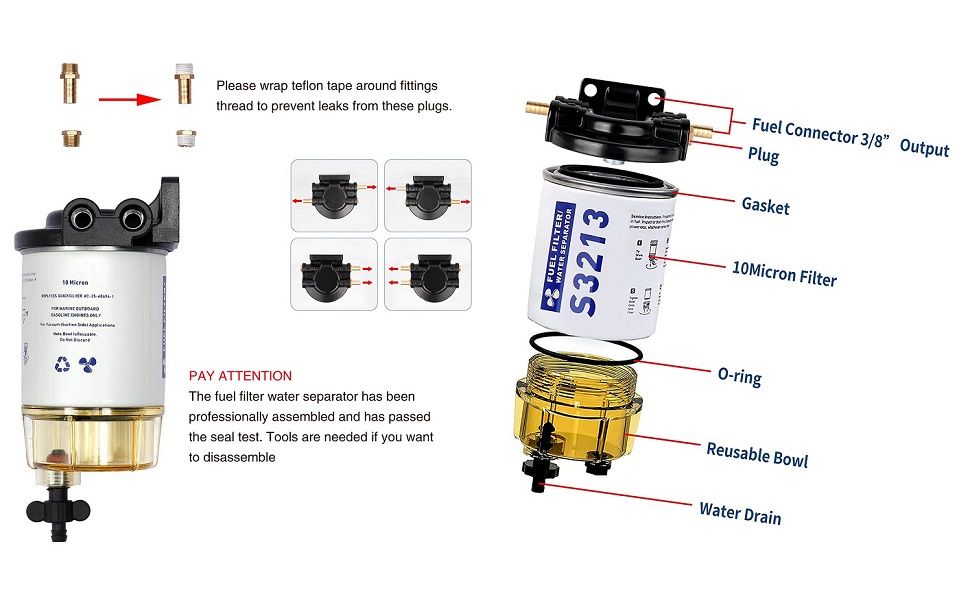

3.Note: Please wrap Teflon tape around the fitting threads to prevent leaks on these plugs
Applications:
Replacement Compatibility: Replaces Mercury 35-60494-1, Lexus S3213, B32013, Yamaha MAR-24563-03-00, 18-792-1, and more.
Efficient Water Separation: Designed for diesel engines, ensuring water is effectively separated from fuel.

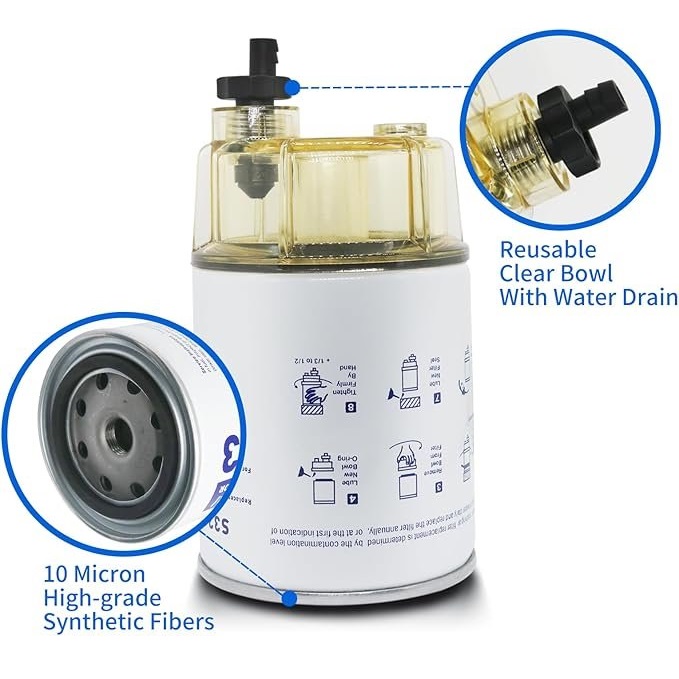

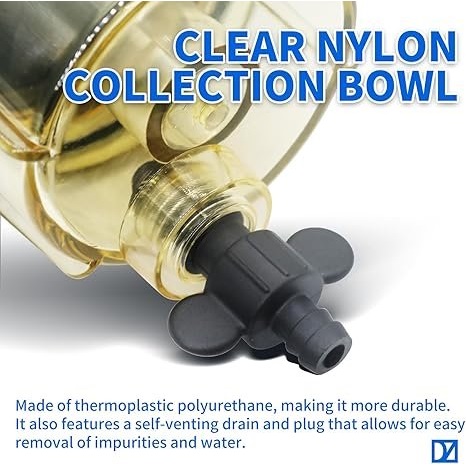

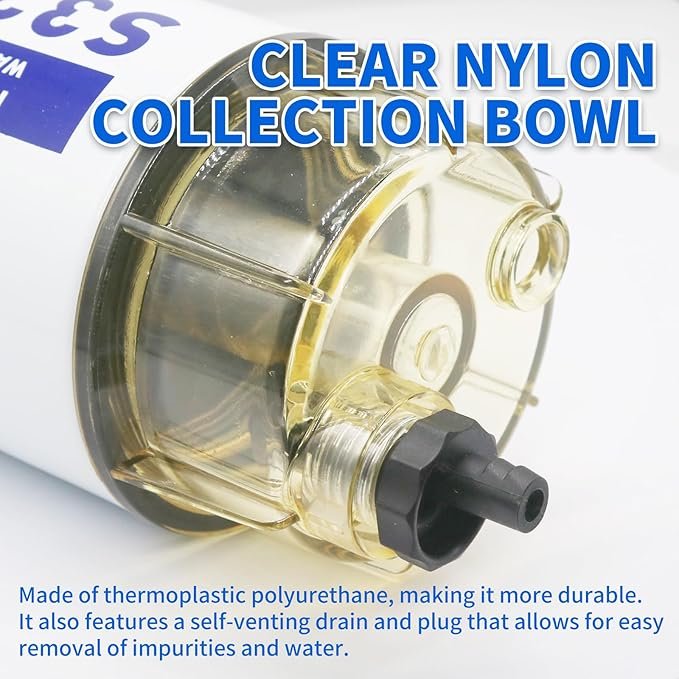

Reusable and Transparent Bowl: Allows easy inspection of debris and water collection for efficient maintenance.
Easy Installation: The input and output ports can be positioned on the same side or opposite sides, offering flexible installation options.
Durable Construction: Made with high-quality brass, nylon, and aluminum materials, resistant to corrosion, oxidation, and rust.
Notes:
1. Check and replace regularly.
2. This is a diesel and water separator, it cannot be a gasoline and water separator.
3. The outlet at the bottom allows you to drain excess dirt and water without disassembling the parts.
4. The input port and output port can be placed on the same side or on the other side to meet your various needs
To replace the element:
1. Loosen the drain screw and drain the unit.
2. Loosen and remove the filter element.
3. Loosen the filter element and take the bowl out.
4. Wipe the O-ring cover clean, apply fresh oil or grease to the sealing O-ring of the bowl and put it back on the cover, then tighten the bowl to the filter element with the tool.
5. Apply fresh oil or grease to the sealing O-ring of the filter element, install the filter element on the filter head and tighten it with the tool.
6. Start the engine and check for fuel leaks.
